- Flows of 100 - 11 300 m3/h
- Pressure to 1 bar (14.5 psig) gauge, to 1.2 bar g. from VTB 840.XL
- Vacuum to 80 mbar abs (24 “Hg)
- Air-cooled
- Rotors: Three-Lobe Rotors with a one-piece, integral lobe and shaft design for improved quality and reliability. Available in ATEX cat.2 on request
- Gears: Helical gears located on the opposite drive side
- Oil reservoir: Large oil reservoir for improved bearing lubrication
- Oil thrower: Oil thrower and oil passages for good bearing lubrication and long life
- Seals: An innovative and unique design that includes 4 piston rings and a shield to insure an oil free operation
- Shaft seals: Innovative dynamic shaft seals arrangement, with dust cover

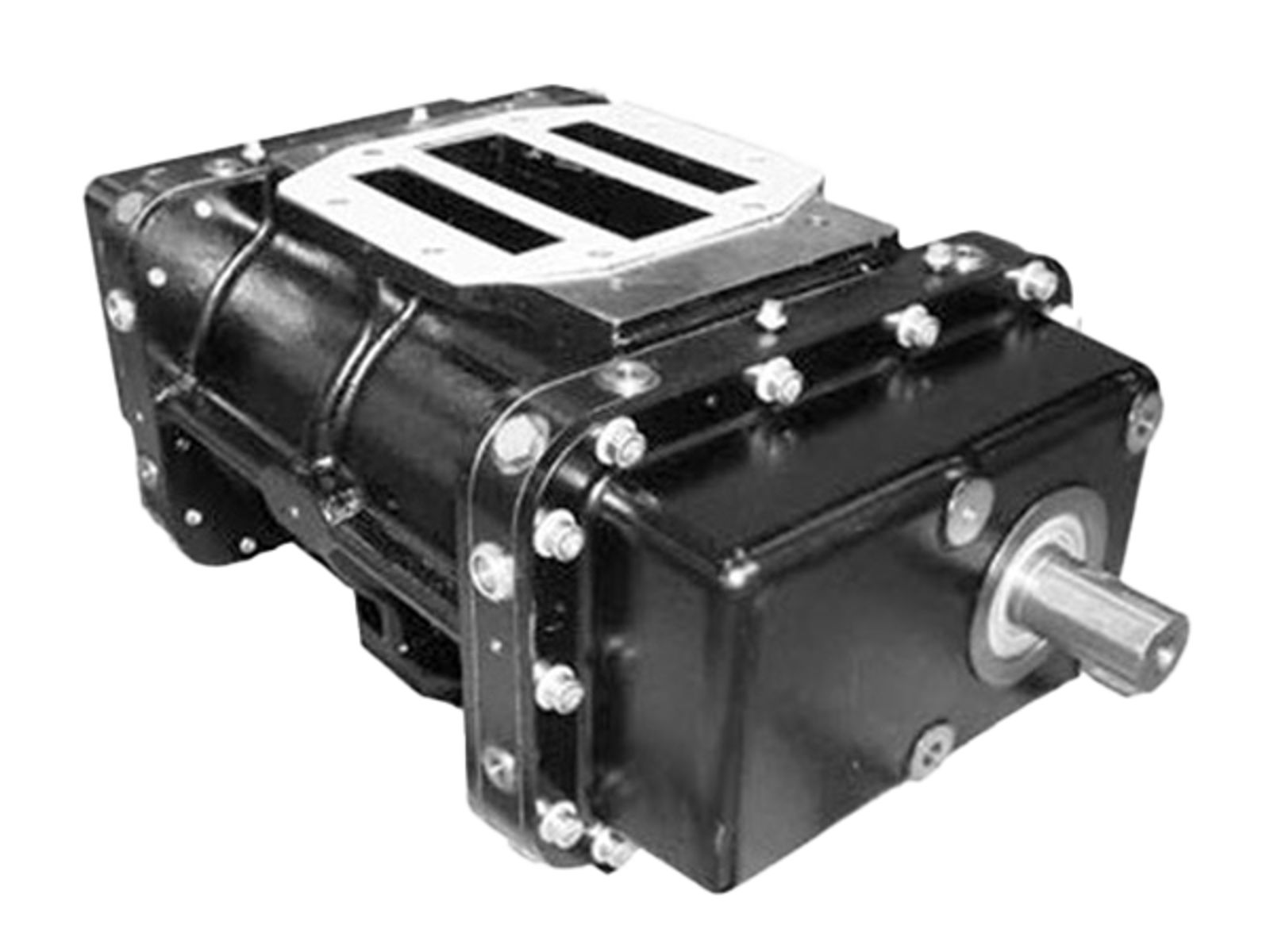

VTB.XL Series Pre-Inlet Blowers
HIBON’s most popular vacuum blower, the VTB.XL, is ideal for industrial cleanup and environmental remediation work. This makes them an excellent solution for picking up and removing wet, dry, liquid or semi-solid waste materials.
The VTB.XL or SIAV/H vacuum blowers are the optimal choice for working with hazardous and non-hazardous applications − anything from heavy sludge to fly ash.
Active in the air-cooled blower market for over 40 years, HIBON produces plug and play solutions for vacuum trucks used to suck up solids, liquids, sludge and slurries.
As the first company that introduced the air injection system in their range of air blowers, HIBON’s technology enables warm gases to be handled easily, and eliminates the need for precooling.
This air-injected series of high-vacuum blowers offer a wide range of design features and incorporate energy efficiency improvements. The blowers are ideally suited for the rigorous demands of the vacuum truck market.
No oil or water cooling system, high mechanical and volumetric efficiency, lifetime reliability, seal design eliminates the chance that oil will enter the air stream, blowers without maintenance for 40000 hours (except oil each year).
- VTB.XL series blowers are engineered primarily for vacuum applications (they can alternatively be used for pressure unloading)
- Standard applications are:
- Vacuum trucks (industrial, septic, municipal, etc.)
- Fly ash vacuum pneumatic conveying
- Evaporation
- Centralized plant vacuum
- Soil remediation
VTB.XL Series – Specifications
MODEL | FREE AIR DELIVERY MAX SPEED (M3H / CFM) | VACUUM UP TO | MAX PRESSURE {BAR(g) / PSI(g)) | WEIGHT W/ FEET (KG / LBS) |
VTB 805.XL | 1028 / 605 | 27 " Hg | 1 / 14.7 | 125 / 275 |
VTB 807.XL | 1570 / 942 | 27 " Hg | 1 / 14.7 | 160 / 346 |
VTB 810.XL | 1901 / 1119 | 27 " Hg | 1 / 14.7 | 220 / 485 |
VTB 820.XL | 2822 / 1661 | 27 " Hg | 1 / 14.7 | 262 / 577 |
VTB 822.XL | 4636 / 2779 | 27 " Hg | 1 / 14.7 | 529 / 1166 |
VTB 840.XL | 6492 / 4000 | 28 " Hg | 1.2 / 17.7 | 775 / 1708 |
SIAV/H 8702 | 9000/ 5250 | 28 " Hg | 1.2 / 17.7 | 1200 / 2645 |
SIAV/H 8902 | 11160 / 6600 | 28 " Hg | 1.2 / 17.7 | 1350 / 2976 |
