- Flows to 25 000 m3/h (14705 cfm)
- Pressure to 1,8 bar (26 psig) gauge
- Vacuum to 500 mbar abs (15 “Hg)
- Shaft seal: lip seal.
- Main seal: carbon rings, double mechanical liquid seal, carbon rings + single gas lubricated seal, double gas lubricated seal
- 100% oil free gas guaranteed
- This series can be used in cryogenic applications (minimum inlet temperature up to -160 °C)

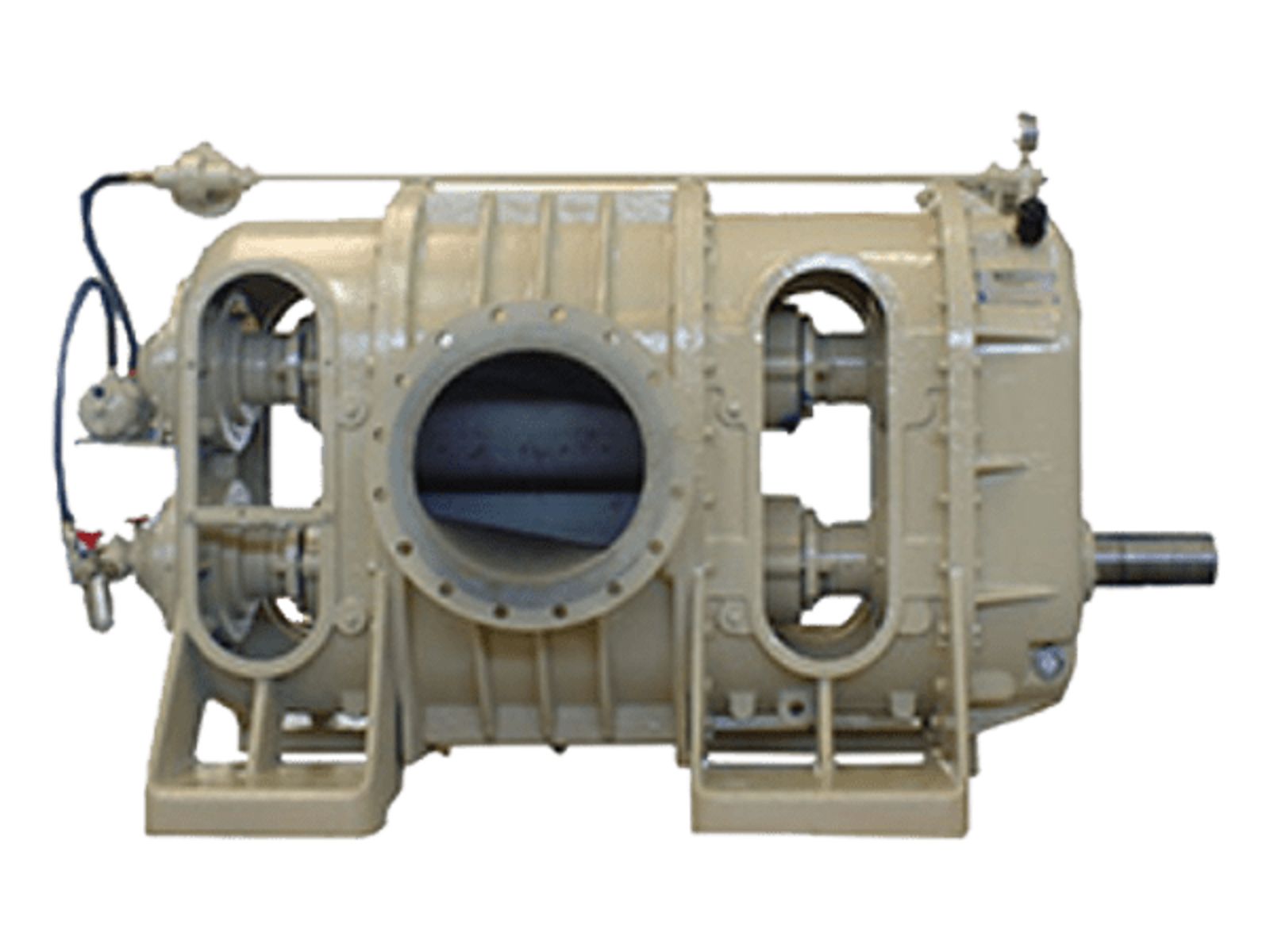

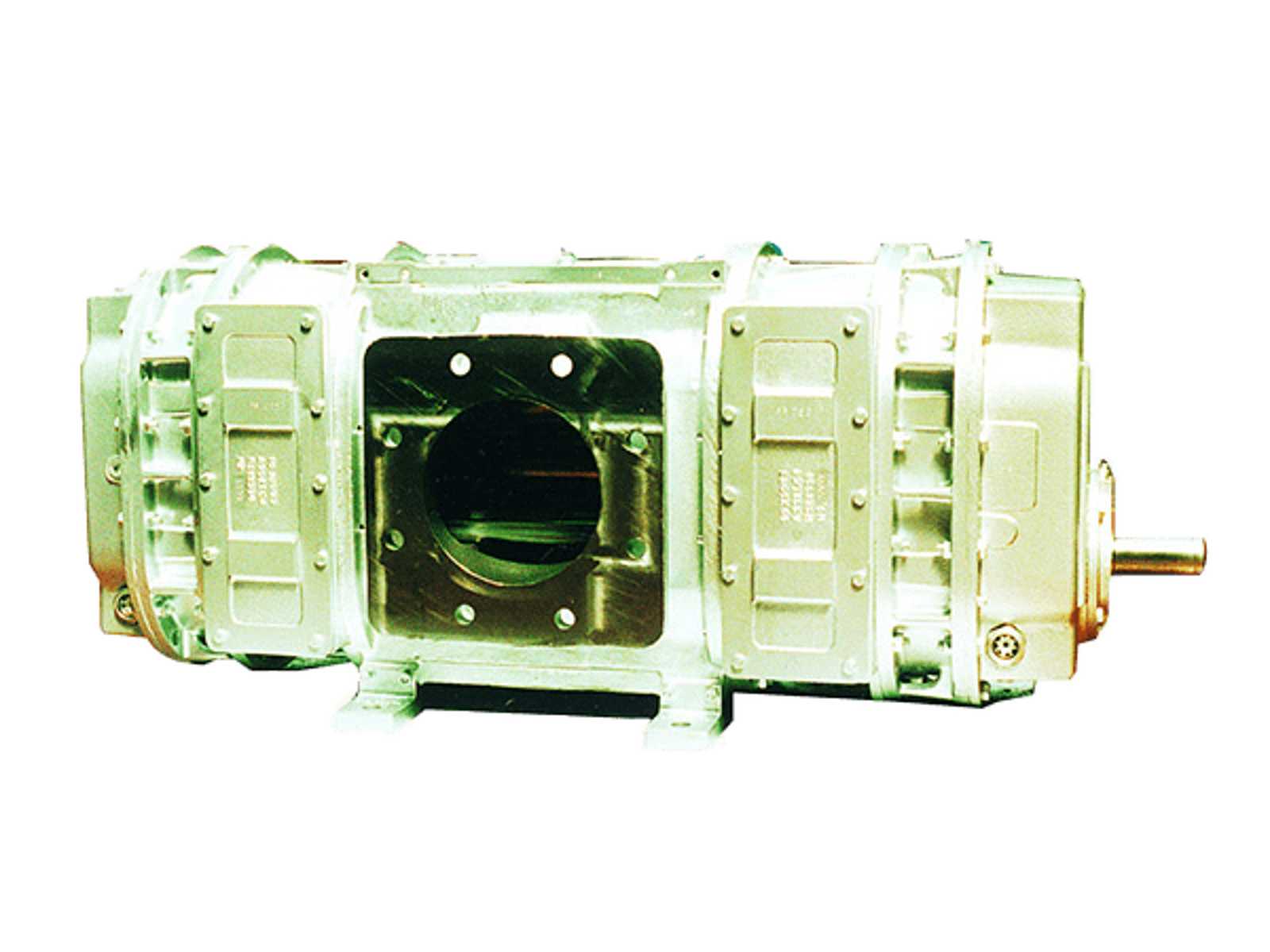

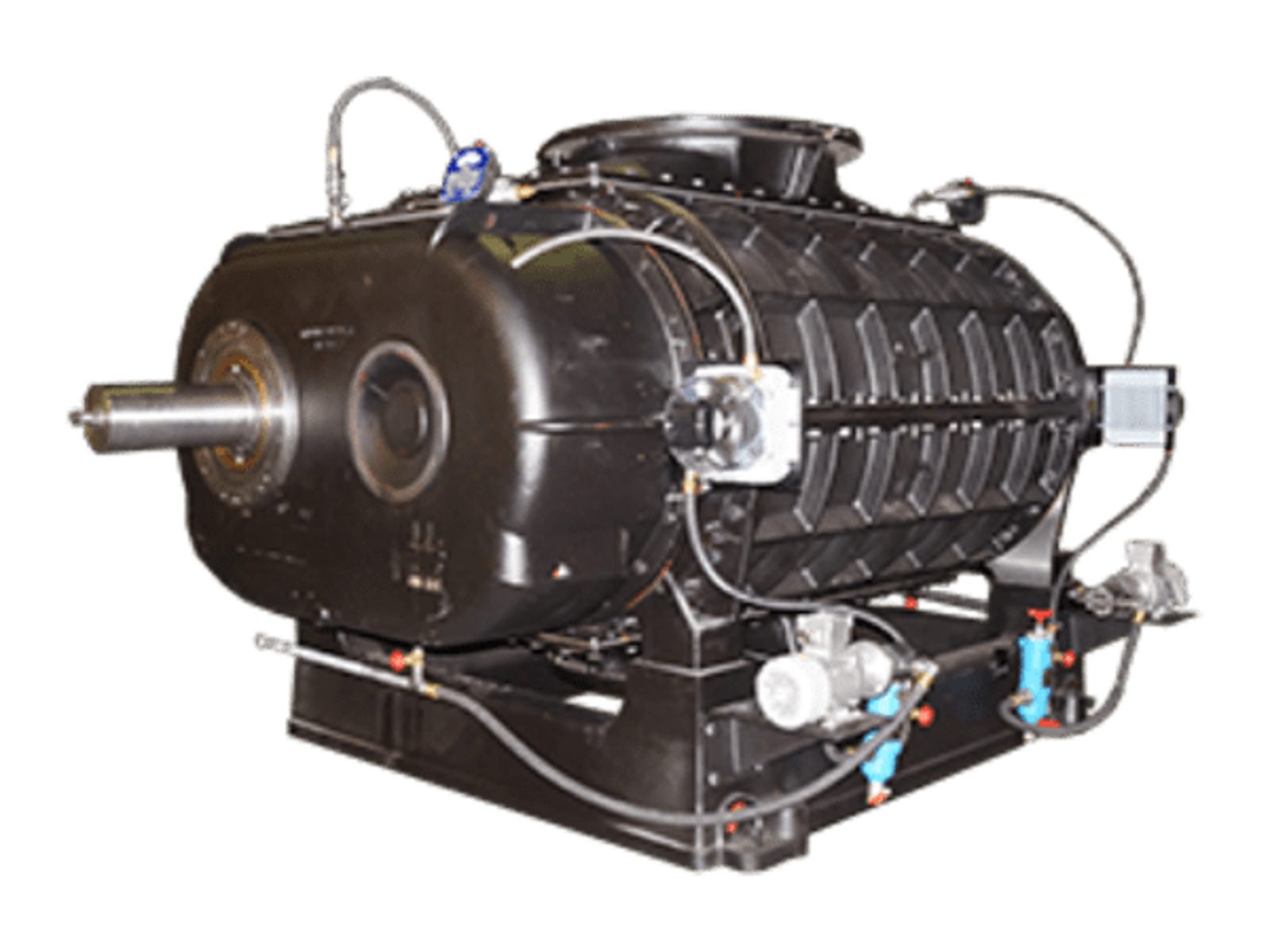

SN-P Process Blowers for Dangerous Gases O2, O3, H2S, CO2
For process applications we manufacture a large range of products used for neutral gases or for aggressive and dangerous gases. Shaft seals or main seals are defined with the condition of applications and guarantee 100% oil free gas. These blowers are built to the highest standards to give you an optimum performance and reliability and are ideally suited for process gas industry (N2, Ar, CH4, He, H2, O2…), for energy or for chemical/petrochemical processes.
- On the shaft, single mechanical seal self lubricated by crankcase oil
- High mechanical and volumetric efficiency
- Auto-adjustments of the lateral clearance for easy assembly
- Lifetime reliability
- 100% oil free operation
- Blowers without maintenance up to 5 years (except oil change every two years if you use HIBON LUBE)
- ATEX available on demand
- Coke blast-furnace gas recovery
- Gas recycling
- Compressor for molecular sieves regeneration
- Transfer of oxygen, produced by Vacuum swing Absorption (VSA)
NX S Series – Specifications
MODEL | MIN. VOLUME FLOW (M3H / CFM) | MAX. VOLUME FLOW (M3H / CFM) | MAX. PRESSURE (BAR(G) / PSI(G)) | WEIGHT (KG / LBS.) |
NX 2_S | 167/ 98 | 510 / 300 | 1 / 15 | 112/ 247 |
NX 3_S | 304 / 179 | 870 / 512 | 1 / 15 | 126 / 278 |
NX 5_S | 493 /290 | 1343 / 790 | 1 / 15 | 146 / 322 |
NX 8_S | 558 / 326 | 1756 / 1031 | 1 / 15 | 211 / 465 |
NX 12_S | 890 / 522 | 2594 / 1525 | 1 / 15 | 258 / 569 |
NX 18_S | 1175 / 691 | 2753 / 1620 | 1 / 15 | 415 / 915 |
NX 26_S | 1875 / 1103 | 3984 / 2345 | 1 / 15 | 480 / 1058 |
