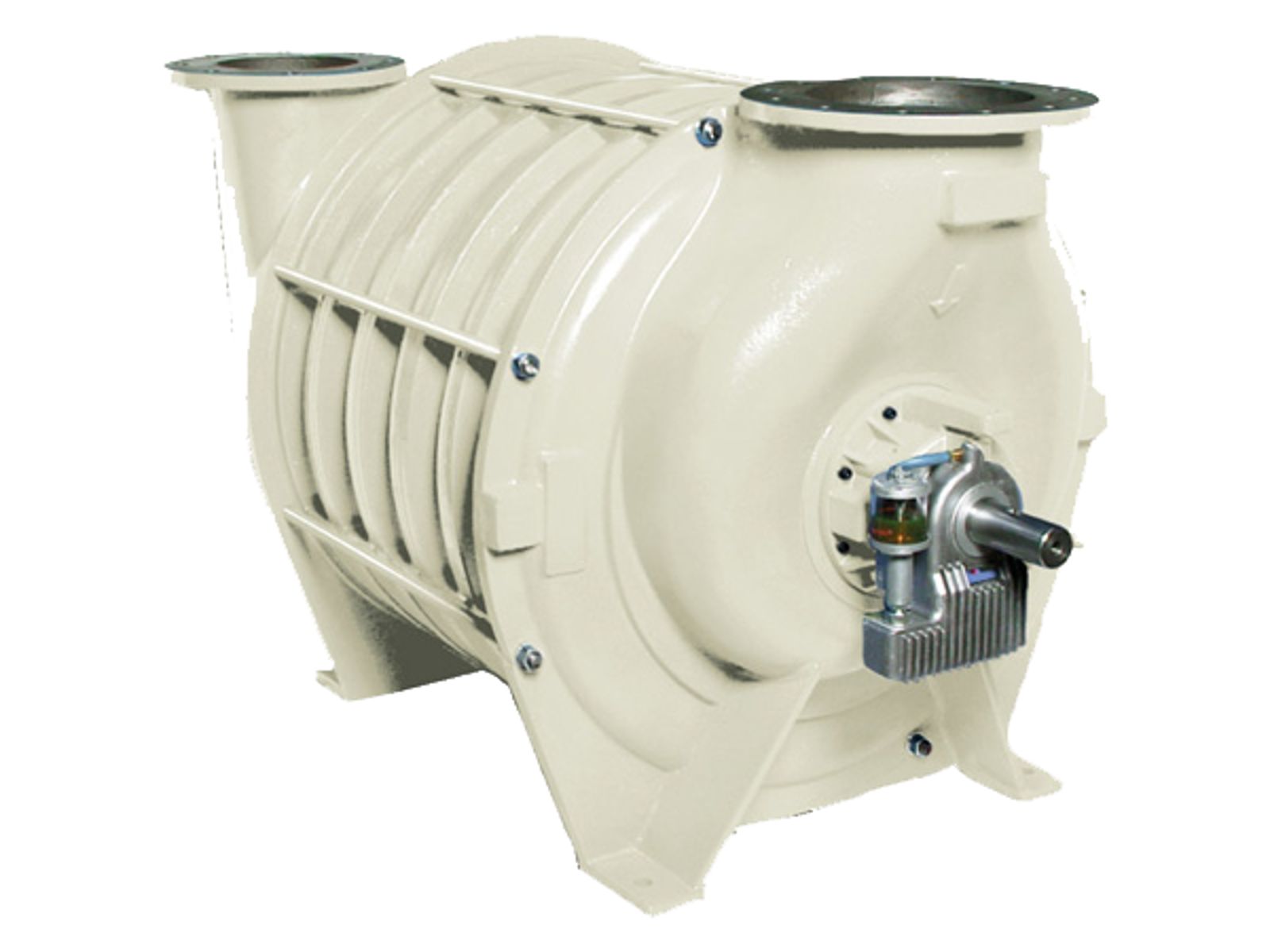

Hibon SME – Multi-Stage Centrifugal Blowers
SME – Multi-Stage Centrifugal Blowers
Ingersoll Rand offers a well proven range of Multistage Centrifugal Blowers: The Hibon SME Series is engineered to meet the requirements of the most demanding blower or exhauster applications for air and gas.
Share
- Flows 10000-40000 m3/h (5883-23530 cfm)
- Pressure to 1.1 bar (16 psig) gauge
- Vacuum to 500 mbar abs (15 “Hg)
- Vertically split cast iron casing
- Cast or riveted type impellers dynamically balanced
- Carbon ring seals to reduce air leakage and improve efficiency
- Cast aluminium bearing housing for better heat dissipation
- Oil splash lubricated bearings with constant level oiler to ensure long bearing life
- Balancing piston on larger models for counteract thrust load on bearings
- Optimized ratios of impellers vs diffuser diameters and large turning radius of inter-stage channel for higher efficiencies.
- Each unit can be equipped with a control panel using a programmable logic controller with an operator interface for highly user-friendly operation
- Aeration (wastewater treatment)
- Combustion air
- Centralized vacuum cleaning systems
- Landfill gas boosting
- Filter scouring (water / wastewater treatment)
- Flotation air
- Agitation
- Drying
- Oxidation air (FGD)
Features
- Flows 10000-40000 m3/h (5883-23530 cfm)
- Pressure to 1.1 bar (16 psig) gauge
- Vacuum to 500 mbar abs (15 “Hg)
- Vertically split cast iron casing
- Cast or riveted type impellers dynamically balanced
- Carbon ring seals to reduce air leakage and improve efficiency
- Cast aluminium bearing housing for better heat dissipation
- Oil splash lubricated bearings with constant level oiler to ensure long bearing life
- Balancing piston on larger models for counteract thrust load on bearings
- Optimized ratios of impellers vs diffuser diameters and large turning radius of inter-stage channel for higher efficiencies.
- Each unit can be equipped with a control panel using a programmable logic controller with an operator interface for highly user-friendly operation
Application
- Aeration (wastewater treatment)
- Combustion air
- Centralized vacuum cleaning systems
- Landfill gas boosting
- Filter scouring (water / wastewater treatment)
- Flotation air
- Agitation
- Drying
- Oxidation air (FGD)
